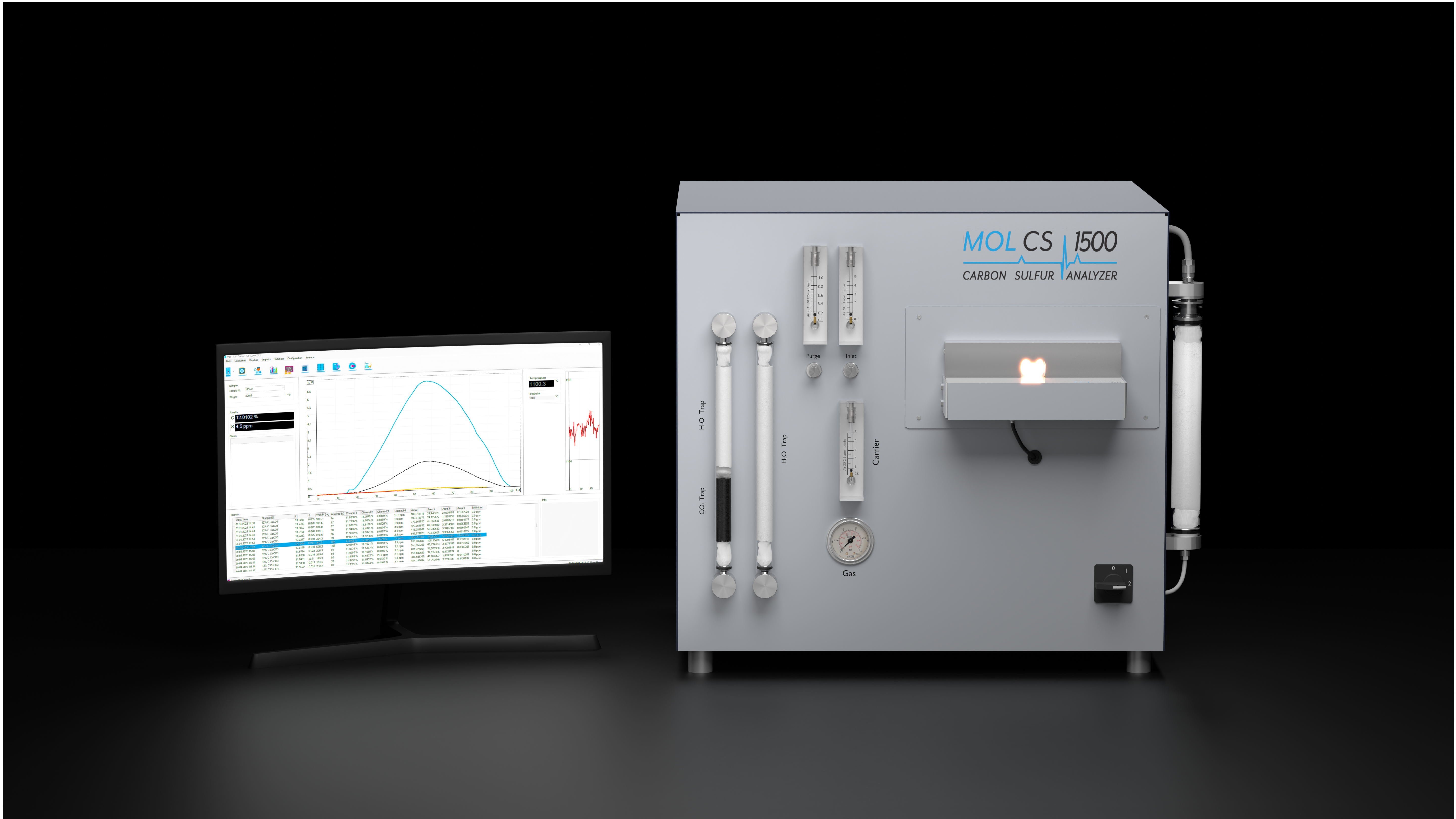

(Carbon & Sulfur Analyzer)

The Mol CS1500 is a compact and powerful elemental analyzer designed for the determination of carbon and sulfur in solid, predominantly organic samples such as coal, coke, oil, ash, catalysts, lime, gypsum, soils, rubber, and waste.

The integrated high-temperature furnace reaches temperatures of up to 1,550 °C, ensuring precise and reproducible analyses even for demanding samples Its low-maintenance and robust design, integrated high-temperature furnace, well-engineered Mol control, monitoring, and evaluation software, as well as its high reliability even under harsh environmental conditions, make it a versatile solution for research, industry, and beyond.

The Mol CS1500 meets or exceeds the requirements of all major ASTM, DIN, EN, and ISO standards for elemental analysis

TECHNICAL DATA

Elements	Carbon, Sulfur
Sample Type	Predominantly Organic Samples
Furnace Orientation	Horizontal
Furnace Type	Resistance-Heated High-Temperature Furnace
Gas Supply	Oxygen: Purity ≥ 99.5%
Chemical Reagents	NaOH, Anhydrone
Power Supply	230 V, 50/60 Hz
Maximum Heating Power	2,000 W
Standard Sample Weight	350 mg
Typical Analysis Time	60 – 120 s
Measurement Principle	Non-Dispersive Infrared Absorption (NDIR)
Number of Infrared Detectors	1 – 4
Sample Carrier	Ceramic Combustion Boats
Dimensions (L × W × H)	26 × 26 × 23 in ​​
Operating Temperature	15 – 33 °C
Humidity	20 – 80 %
Peripheral Devices	Monitor, PC, Balance

For more information about MOL CS1500, please visit Visit
