(Carbon & Sulfur Analyzer)

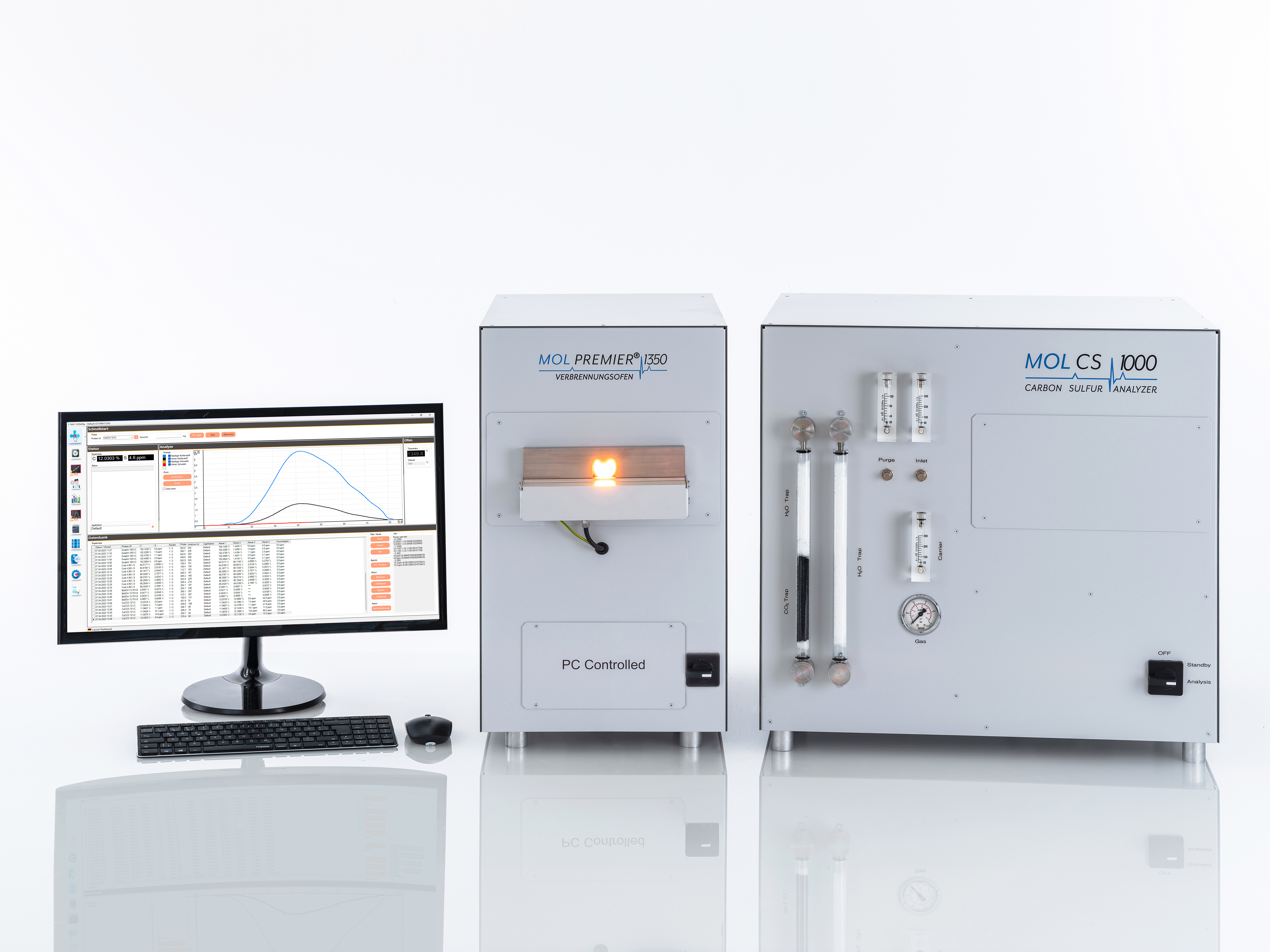

The Mol CS1000 is the perfect solution for laboratories that require the highest precision and reliability in the determination of carbon and sulfur in solid samples. With its innovative technology and compact design, it combines functionality and efficiency at the highest level. It is specifically designed for the analysis of predominantly organic, solid samples such as coal, coke, oil, ash, catalysts, lime, gypsum, soils, rubber, and waste.

Mol CS1000 enables the precise determination of environmental parameters such as TOC (Total Organic Carbon) and TIC (Total Inorganic Carbon). Its high performance, robustness, and reliability make it the ideal solution for a wide range of applications in elemental analysis from research laboratories to industrial environments.

TECHNICAL DATA

Elements	Carbon, Sulfur
Sample Type	Predominantly organic samples
Furnace Orientation	Horizontal
Furnace Type	External furnace from the Mol Premier series
Gas Supply	Oxygen: Purity ≥ 99.5%
Chemical Reagents	NaOH, Anhydrone
Power Supply	230 V, 50/60 Hz
Maximum Heating Power	2,000 W
Standard Sample Weight	350 mg
Typical Analysis Time	60 – 120 s
Measurement Principle	Non-Dispersive Infrared Absorption (NDIR)
Number of Infrared Detectors	1 – 4
Sample Carrier	Ceramic combustion boats
Analyzer Dimensions (L x W x H)	23″ x 24″ x 23″
Furnace Dimensions (L x W x H)	26″ x 15″ x 23″
Operating Temperature	15 – 33 °C
Humidity	20 – 80 %
Peripherals	Monitor, PC, Balance
